Deutsch DT Connector 2P
Deutsch DT Connector 2P
Regular price
$12.00 NZD
Regular price
Sale price
$12.00 NZD
Unit price
per
Taxes included.
Couldn't load pickup availability

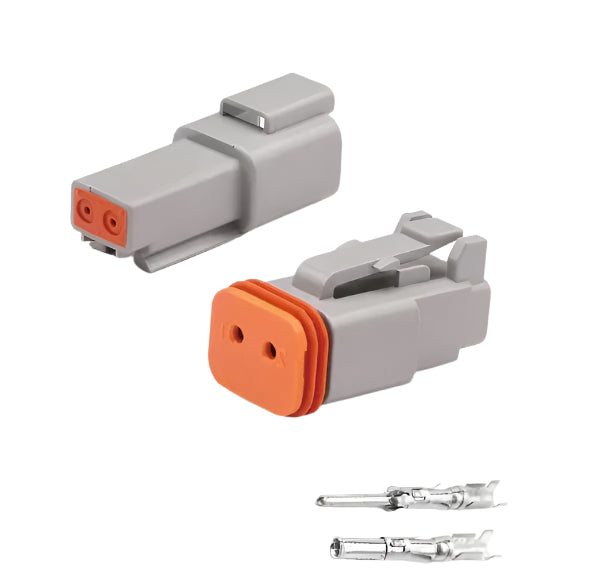

Deutsch DT water-proof connector complete set
-
DT06-2S/DT04-2P
-
Description: PLG, 2P, GRY, N
-
Number of Positions : 2
-
Connector & Housing Type : Housing for Female Terminals
-
18-16 AWG wire
Compatibility & Tooling Reference
All part numbers and specifications below are sourced from Deutsch / TE Connectivity manufacturer documentation. Unverified cross-brand interchange claims are excluded.
| Category | Detail | Notes |
|---|---|---|
| Mating Plug (male housing) | DT04-2P | 2-position male plug; mates directly with DT06-2S socket housing |
| Socket Housing (this item) | DT06-2S | 2-position female/socket housing; grey (GRY); accepts size 16 stamped contacts |
| Wedgelock / Wedge | W2S (for DT06-2S socket housing) | Secondary lock / terminal position assurance; required for IP67 retention |
| Wedgelock / Wedge | W2P (for DT04-2P plug housing) | Secondary lock for male housing; pair with W2S for complete assembly |
| Female Terminal (socket) | 0462-201-16141 | Size 16 stamped socket; gold-plated; rated for 13 A continuous |
| Male Terminal (pin) | 0460-202-16141 | Size 16 stamped pin; gold-plated; rated for 13 A continuous |
| Wire Gauge (confirmed) | 18–16 AWG | 18 AWG is fully supported within spec; use 0.8–1.3 mm² stranded copper |
| Seal (inline / wire) | Included with contact (factory-sealed) | Individual wire seals pre-fitted to 0462/0460 series contacts; do not omit for IP67 |
| Connector Interface Seal | Integral to DT06-2S housing | Face seal integrated into socket housing; seals mated pair to IP67 / IP69K |
| Recommended Crimping Tool | HDT-48-00 (Deutsch hand tool) | Official Deutsch hand crimp tool; correct turret for size 16 contacts |
| Turret / Die Insert | No. 8 turret (supplied with HDT-48-00) | For 18–16 AWG wire with size 16 stamped contacts; inspect crimp height per spec |
| Amphenol Interchange | Not verified | Amphenol AT and Deutsch DT housings are not manufacturer-confirmed as interchangeable; do not mix without independent verification |
